1000w 48V E-Bike Conversion Kit Front Wheel – LCD Display

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

$535.00$555.00

Clear
SKU: 32553272500 Category:

1 review for 1000w 48V E-Bike Conversion Kit Front Wheel – LCD Display

  1. Rated 5 out of 5

    J***y

    I am still installing the product. It’s taking long time because I had to do a lot of hand fitting with a file and dermal tool. The product is great but my bicycle is older. I installed the pedal sensor by drilling small hole into the pedal shaft housing and used miniature self tapping screws. The batteries were taken from old abandoned packs. I tested 300 batteries and got a yield of 160 good batteries. This is a lot of fun. I have not yet connected the motor to the battery because it’s not finished yet. When my budget is better, I will buy 200 18630 3.7 volt batteries and build a higher power pack.

Only logged in customers who have purchased this product may leave a review.

Description

26″ 48v 1000w e-bike FRONT Tire Kit

Brushless Hub Motor 48V 1000w for FRONT Wheel:

48v1000W Brushless Spoke Motor

Motor Net Weight: 14.33lbs

Motor Diameter: 9.44inch

Hall Sensor Quantity: 5pcs

Max. Speed: 35mph

Max Load weight: 300lbs

Axle Diameter: 0.6 inch

Bushing Size: Diameter: 0.6inch, Height: 1.37inch

Min. Fork Width Requirement: Min.3.93inch

Corresponding Controller: 48V 1000w Controller

Available Wheel Size: 20″, 24″, 26″, 27″ 700C, 28″

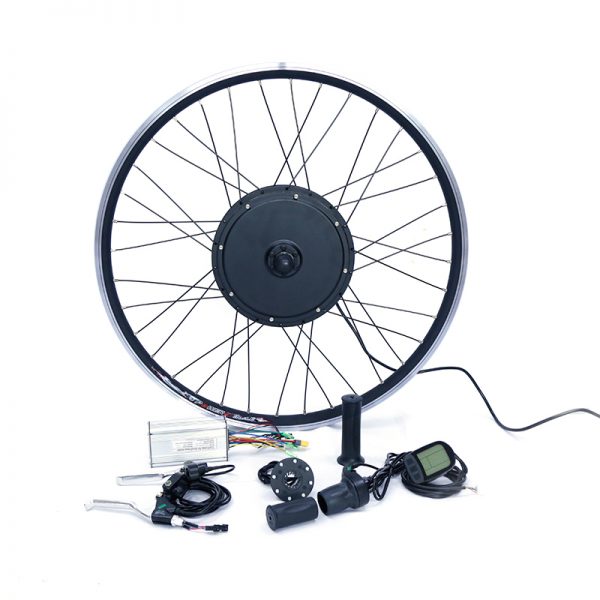

PACKAGE LIST:

48v1000w brushless front motor wheel

48V 1000w controller

thumb throttle or twist throttle

two brake levers

harness wires and Operation manual

controller bag

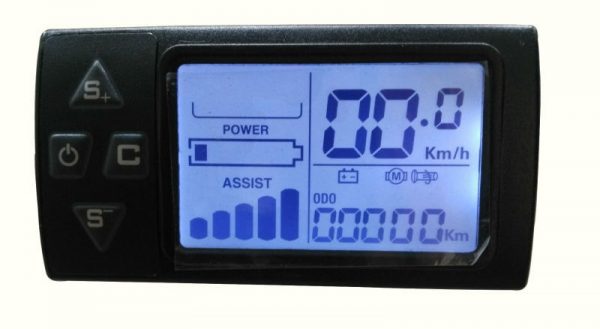

48v LCD display

1:1 Pedal Assist System

Additional information

Weight 14 oz
Dimensions 65 × 65 × 19 in
Motor Type

Brushless Non-gear Hub Motor

Voltage

48V

Design

Brushless

Wattage

> 400w

color

black with sliver

power

1000w

FAQs

Yes, contact the store.

Brushless

I’ve had it 16 months with no problems.

Yes, there’s a key for using the motor to deter theft.

Yes. When you hit the brakes, the motor stops running.

Yes, there is a 1 year manufacturers warranty and 30-day refund/return policy.
